| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
|
| Chipset | AMD B650 | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|
| Memory | ||
| Number of Memory Slots | - 4 x DDR5 DIMM Slots |
|
| Channel Supported | - Dual Channel DDR5 Memory Technology | |
| Maximum Memory | Max. 256GB | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) |
|
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| Storage | ||
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Audio | ||
| Audio | 3 x Audio jacks | |
| BIOS | ||
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support | |
| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| Display Port | 1x DisplayPort 1.4 | |
| Audio | 3 x Audio jacks | |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Special feature | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

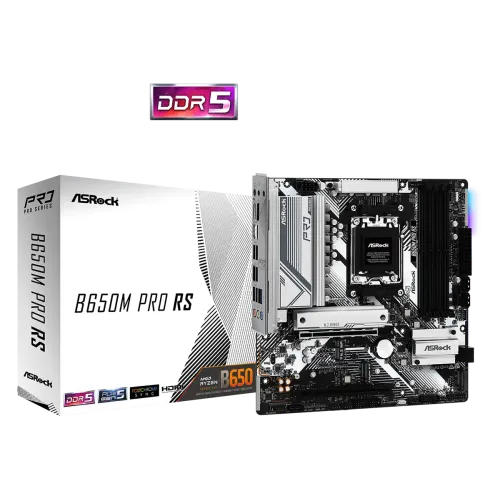

The ASRock B650M Pro RS AM5 Micro ATX Motherboard is a high-performance, feature-rich motherboard designed for mainstream DIY enthusiasts and gamers. Supporting AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors, this ASRock motherboard ensures compatibility with the latest CPUs. It boasts an 8+2+1 Power Phase with Dr.MOS for stable power delivery, supports up to 4 DDR5 DIMMs with speeds up to 7200+ MHz (OC), and offers versatile storage options with multiple M.2 slots and SATA3 connectors. With robust connectivity options, including USB 3.2 Gen2 and Dragon 2.5G LAN, and integrated Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio, this ASRock motherboard delivers top-tier performance and reliability for gaming, content creation, and general computing tasks. ASRock B650M Pro RS AM5 Micro ATX Motherboard comes with 3 Years Warranty.
