| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) | |
| Chipset | Intel B760 | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
|
| Memory | ||
| Number of Memory Slots | 2 | |
| Channel Supported | - Dual Channel DDR5 Memory Technology |
|
| Maximum Memory | 128GB | |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
|
| Max Shared Memory | ||
| Expansion Slots | ||
| Expansion Slots | ||
| Storage | ||
| Supported Storage | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** - 4 x SATA3 6.0 Gb/s Connectors |
|
| Network | ||
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless | ||
| Audio | ||
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 | |
| USB Ports | 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
|
| DVI-D (s) | ||
| Display Port | 1 x DisplayPort 1.4 | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
| RAID | - Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |

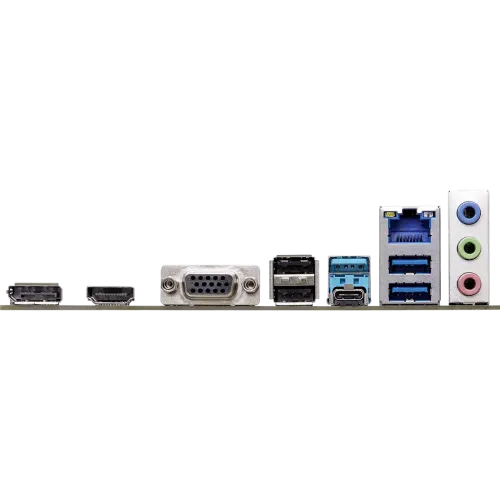

| Internal I/O Ports | - 2 x Antenna Mounting Points - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Wireless Communication module | ||
| Special feature | ||
| Warranty | ||
| Warranty | 3-year Warranty | |
The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard is a high-performance motherboard designed to support the latest 14th, 13th, and 12th Gen Intel Core processors (LGA1700), making it ideal for gamers, content creators, and professionals. It features dual-channel DDR5 memory support with speeds up to 7200+ MHz (OC), ensuring fast and efficient multitasking. With 1 PCIe 4.0 x16 slot and 2 PCIe 3.0 x1 slots, it offers versatile expansion options, while its storage capabilities include 1 Hyper M.2 (PCIe Gen4 x4) slot, 1 Ultra M.2 (PCIe Gen3 x4) slot, and 4 SATA3 ports for high-speed SSDs and additional storage. The motherboard provides comprehensive connectivity with 1 USB 3.2 Gen1 Type-C port, 5 USB 3.2 Gen1 Type-A ports, and 6 USB 2.0 ports, along with multiple display outputs supporting up to 4K resolution. Enhanced with Realtek ALC897 7.1 CH HD Audio Codec for high-quality sound and Dragon 2.5G LAN for fast internet connectivity, the ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard combines performance, reliability, and advanced features in a compact form factor, making it a powerful and efficient choice for any PC build. The ASRock B760M-HDV/M.2 DDR5 Micro ATX Motherboard Comes with 3-Year Warranty.
