| Basic Information | ||
| Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 14 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel K-Series unlocked CPUs - Supports ASRock Hyper BCLK Engine III |
|
| Chipset | Intel Z590 | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM Slots | |
| Channel Supported | Dual Channel DDR4 Memory Technology | |
| Maximum Memory | Max. capacity of system memory: 128GB | |
| Supported Memory | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC) - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
|
| Graphics | ||
| Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc - Three graphics output options: 1 x HDMI and 2 x Intel Thunderbolt 4 - Supports Triple Monitor - Supports Intel Thunderbolt 4 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 2.0 and Intel Thunderbolt 4 Ports |
|
| Expansion Slots | ||
| Expansion Slots | PCI: 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE2); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE2) / Gen3x4 (PCIE4)) 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/ PCIE2/ PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE2); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE2) / Gen3x4 (PCIE4)) - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) M.2 Socket - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s). |
|
| Storage | ||
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061 - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
| Network | ||
| LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) - Supports Killer LAN Software - Supports Killer DoubleShot Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Wireless | Bluetooth 5.2 + High speed class II | |
| Audio | ||
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - WIMA Audio Capacitors (For Front Outputs) - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio |
|
| BIOS | ||
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM(VCCM, VPPM, VTT), VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO_0, VCCIO_1_2, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI Port | |
| USB Ports | - 2 x USB 4.0 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection) - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 2 x RGB LED Headers - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) - 1 x Clear CMOS Button - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |
|
| Others | ||
| Special feature | Wireless LAN: - Killer AX1675x 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot Pro |
|
| Warranty | ||
| Warranty | 03 years warranty |
|

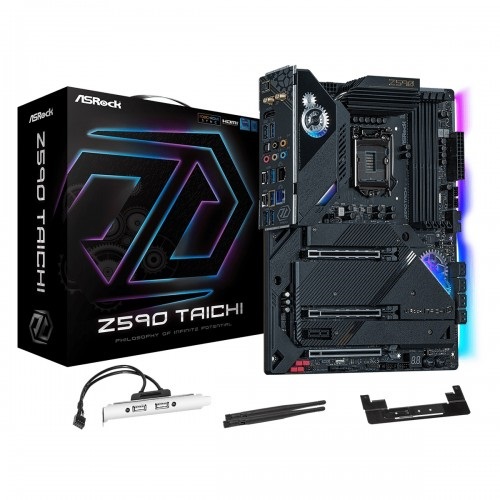

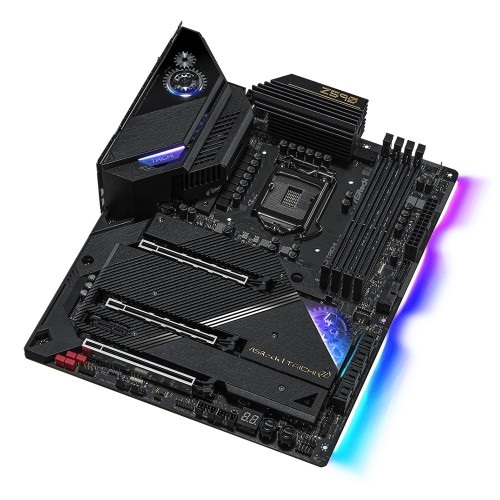

The ASRock Z590 Taichi Wi-Fi 10th and 11th Gen ATX Intel Motherboard supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors. Taichi Represents The Philosophical State Of Undifferentiated Absolute And Infinite Potential. A Motherboard That Fulfills Every Task – With Style. Become Like Water. Shapeless, Formless, Versatile For Any Situation. Optimized FAN Design For The Better Heat Dissipation. You Can Choose Bundled 3CM High Performance Fan, Or Upgrade To Your Own 4CM Fan For Better Cooling And Silence Performance. Install Your Heavy Graphics Card On The Holder; Connect It To Your Motherboard And Chassis With Screws. Flexibly Slide Up And Down To Perfectly Adjust The Height Required For Your Graphics Card In Place. The 8 Layer PCB Comes With 4 Sets Of 2 Ounce Copper Inner Layers, Providing Stable Signal Traces And Power Shapes And Delivering Lower Temperature And Higher Energy Efficiency For Overclocking. Thus, It's Able To Support The Latest DDR4 Memory Modules With Most Extreme Memory Performance. Dr. MOS Design Features The Latest SPS (Smart Power Stage) Technology. It’s Optimized For Monitoring Current And Temperature Of Each Phase, Thus Delivering Smoother And Neater Power To The CPU With Enhanced Performance And OC Capability. Compared To Traditional Chokes, ASRock’s Premium 90A Power Chokes Effectively Make The Saturation Current Up To Three Times Better, Thus Providing Enhanced And Improved Vcore Voltage To The Motherboard. Aimed For Die Hard Gamers And Enthusiasts. Lightning Gaming Ports Are Sourced From Two Different Controller Interfaces That Allow Gamers To Connect The High Speed Mice/Keyboard With The Lowest Jitter Latency And Win The Best Performance. This Motherboard Is Capable Of Accommodating Multiple M.2 Storage Devices, One Of Which Can Even Support Next Generation PCI Express 4.0 M.2 SSD, It Is Capable Of Performing Twice The Speed Compared To Previous 3rd Generation, Giving A Lightning Fast Data Transferring Experience. ASRock Z590 Taichi Wi-Fi 10th and 11th Gen ATX Intel Motherboard comes with 3 years of warranty.
