| Basic Information | ||
| Type | Mini Tower | |
| Motherboard Compatibility | Mini-ITX Mini-DTX |
|
| Side Panel Window | Left Side Tempered Glass Panel | |
| Front Panel | Front Side Tempered Glass Panel | |
| Features | ||
| Expansion Slots | 3 expansion slots space | |
| Front Ports | 2 x USB 3.2 Gen1 1 x USB 3.2 Gen2 Type C 2 x USB 2.0 |
|
| Radiator Support | Rear: 120 mm, 240 mm | |
| Fan Support | Top: 2 x 120 mm, 2 x 140 mm Rear: 2 x 120 mm |
|
| Drive Bays | 4 x 2.5" Bay 1 x 2.5"/3.5" Combo Bay |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 130 mm | |
| Maximum GPU Card Length | 320 mm | |
| Maximum PSU Length | 160 mm (ATX or SFX) | |
| Physical Specifications | ||
| Dimensions | 194 (W) x 531 (H) x 386 (D) mm 7.64 (W) x 20.9 (H) x 15.2 (D) inch |
|
| Weight | 8.73 Kg | |
| Color | Black | |
| Warranty Information | ||
| Warranty | No Warranty | |

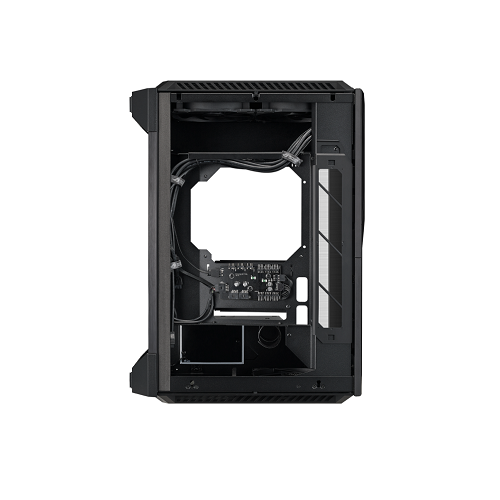

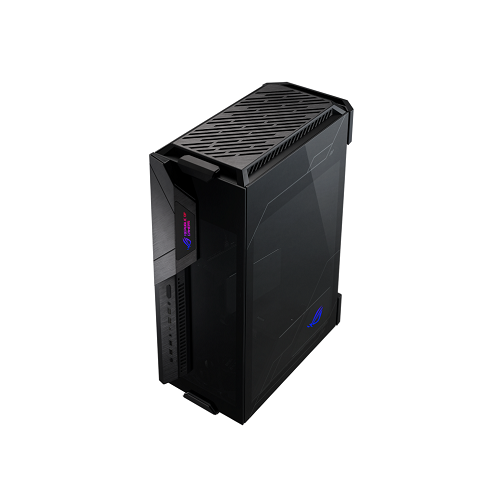

The Asus GR101 ROG Z11 Mini-ITX/DTX Mini Tower Gaming Casing is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility, and connectivity. The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware—such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling, the Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels. Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and the ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components. The ROG Z11 is built for optimized cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans or three 140 mm plus two 120 mm fans, users can maximize airflow and have the flexibility to customize. The PSU shroud offers two pieces, and the removable second piece provides greater cable management space and greater airflow directed towards the graphics card. A built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze. Removable dust filters on the top, bottom, left, front, and back sides provide complete protection from dust and make short work of cleaning and maintenance. The Asus GR101 ROG Z11 Mini-ITX/DTX Mini Tower Gaming Casing has no warranty.
