| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD X670 | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | 128GB | |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1 |
|
| Expansion Slots | ||
| Expansion Slots | PCI AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot M.2 Socket Total supports 3 x M.2 slots |
|
| Storage | ||
| Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Intel 2.5Gb Ethernet | |
| Audio | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| BIOS | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| Display Port | 1x DisplayPort | |
| Audio | 3 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special feature | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
|
| Warranty | ||
| Warranty | 3 Years | |

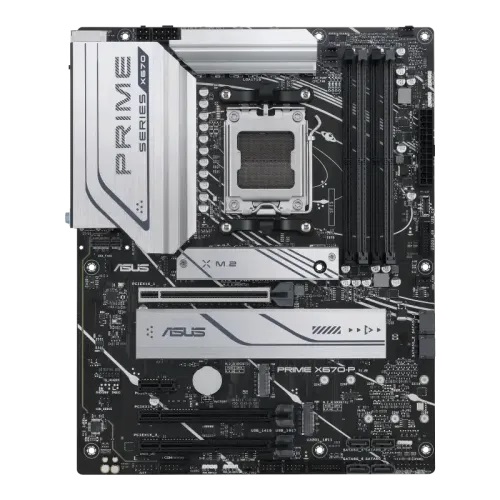

The Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard motherboards are skillfully designed to maximize the performance of AMD Ryzen 7000-series CPUs. Asus PRIME X670-P-CSM, with its robust power design, comprehensive cooling solutions, and intelligent tuning options, offers users and PC DIY builders a variety of performance optimizations via intuitive software and firmware features. PRIME X670-P-CSM is designed to handle AMD processors high core counts and bandwidth demands. It includes all of the essentials for increasing daily productivity, ensuring that your system is ready for action with stable power, intuitive cooling, and flexible data transfer options. Build your next rig with an AMD Ryzen 7000 Series processor and PRIME X670-P-CSM to experience advanced performance. With up to 16 "Zen 4" cores and 32 threads, boost clocks of up to 5.7GHz, and an 80MB cache, this model keeps you ahead of the game. With AMD Socket AM5, you'll also have access to additional capabilities for gamers, such as DDR5 memory speed and PCIe 5.0 improved bandwidth. AMD Ryzen 7000 Series CPUs and AMD socket AM5 motherboards are overclockable, allowing you to customize your experience. Overclock your DDR5 memory with AMD EXPO technology to get even more performance. Asus PRIME X670-P-CSM DDR5 AM5 ATX Motherboard comes with 3 years of warranty.
