| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B660 Chipset | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM slots | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | 128GB | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) Optimem |
|
| Graphics | ||
| Graphics | 2 x DisplayPort 1 x D-Sub port 1 x HDMI port Supports max. 4K@60Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Expansion Slots | ||
| Expansion Slots | PCI Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
|
| Storage | ||
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Intel 1Gb Ethernet ASUS LANGuard |
|
| Audio | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
|
| BIOS | ||
| BIOS | 128Mb Flash ROM | |

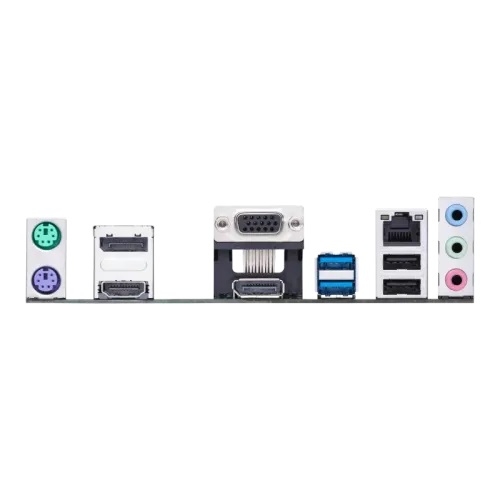

| Ports & Connectors | ||
| HDMI | 1 x HDMI | |
| USB Ports | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| Display Port | 2 x DisplayPort | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) | |
| Special feature | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard |
|
| Warranty | ||
| Warranty | 3 Years | |

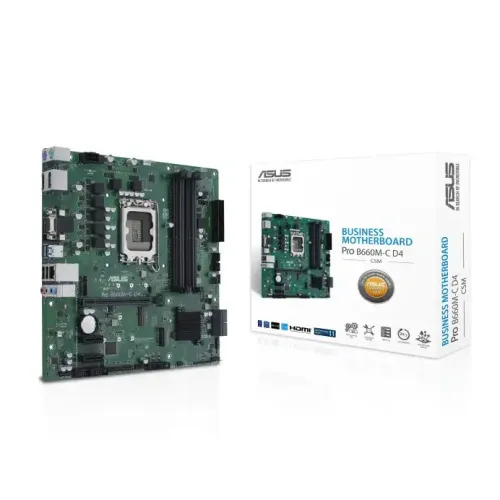

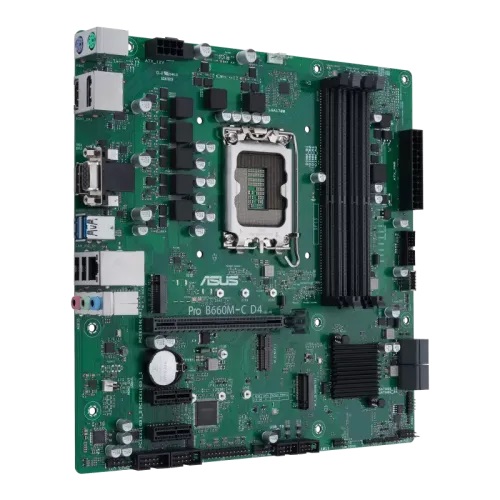

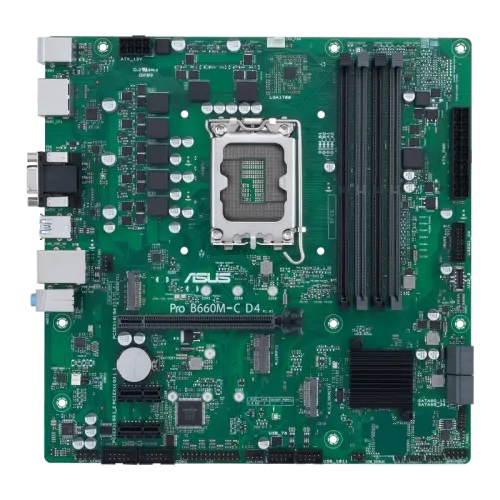

The new Asus Pro B660M-C D4-CSM 12th Gen Micro-ATX Motherboard provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Pro B660M-C D4-CSM offers high-quality, TCO-optimized solution for your business computing-needs. Asus Pro B660M-C D4-CSM is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software. ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs. Asus Pro B660M-C D4-CSM 12th Gen Micro-ATX Motherboard comes with 3 years of warranty.
