| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | Max. 128GB | |
| Supported Memory | 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Expansion Slots | ||
| Expansion Slots | PCI Intel 13th & 12th Gen Processors 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) M.2 Socket Total supports 4 x M.2 slots |
|
| Storage | ||
| Supported Storage | Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless | 3 years | |
| Audio | ||
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| BIOS | ||
| BIOS | 256 Mb | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port | |
| USB Ports | Rear USB (Total 8 ports) 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD 3.0 / QC 4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| Display Port | 2 x DisplayPort | |
| Audio | 5 x Audio jacks | |
| RAID | Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10 | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header Back Panel I/O Ports 2 x Thunderbolt 4 USB Type-C port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 with AI Cooling II - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
|
| Special feature | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Box Headers - ProCool II - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
|

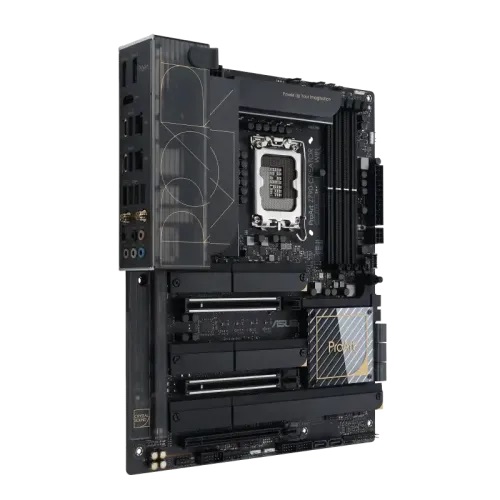

The Asus ProArt Z790-CREATOR Wi-Fi 12th & 13th Gen ATX Motherboard is designed for experienced builders who want to make use of the power of Intel's 12th and 13th Generation CPUs and gaming-focused components. With an Intel Z790 socket, you may easily install a wide choice of 12th and 13th Generation CPUs. Four DDR5 DIMM slots provide you with the increased speed and performance you need to streamline your production as well as edit and relive your favorite in-game moments. You may add an array of storage disks using the eight SATA and four M.2 connectors, resulting in a vast library for your media assets. Put graphics and utility cards in two PCIe 5.0 x16 slots and one PCIe 4.0 x16 (in x4 mode). With USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 connectivity, you may plug in your favorite peripherals such as keyboards, mice, audio interfaces, and more. Bluetooth 5.3 allows you to utilize wireless devices like keyboards, mice, and headphones. Dual RJ45 ports offer 2.5 and 10 Gigabit Ethernet speeds, allowing you to use teaming features to swiftly upload and download huge data. You may also connect to your network without a cable connection by using Wi-Fi 6E (802.11ax) wireless networking. Asus ProArt Z790-CREATOR Wi-Fi has a 16+1 paired power solution, 8+4 ProCool sockets, and alloy chokes with durable capacitors provide consistent electrical loads perfect for resource-hungry games. ProArt Z790-CREATOR has M.2 PCIe 4.0 technology, which allows you to load programs quicker from your M.2 SSD, allowing you to get into your games and apps faster. Asus ProArt Z790-CREATOR Wi-Fi 12th & 13th Gen ATX Motherboard comes with 3 years of warranty.
