| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | A520 | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | Slots 4 x DIMM |
|
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | 128GB | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
|
| Expansion Slots | ||
| Expansion Slots | PCI AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| Storage | ||
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Audio | ||
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
|
| BIOS | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI port | |
| USB Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| Display Port | 1 x DisplayPort | |
| Audio | 3 x Audio jacks | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special feature | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| Warranty | ||
| Warranty | 3 Years | |

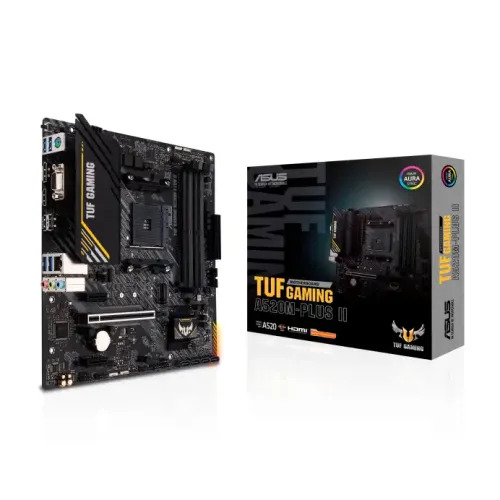

The Asus TUF GAMING A520M-PLUS II AMD AM4 micro-ATX Motherboard portrays essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, Asus TUF GAMING A520M-PLUS II delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF GAMING A520M-PLUS II is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. It provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag. Asus TUF GAMING A520M-PLUS II AMD AM4 micro-ATX Motherboard comes with 3 years of warranty.
