| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 Chipset | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 x DIMM | |
| Channel Supported | Dual Channel Memory Architecture | |
| Maximum Memory | 128GB | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x D-Sub 1 x HDMI 2.1 (4K@60Hz) |
|
| Expansion Slots | ||
| Expansion Slots | PCI AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset: 2 x PCIe 3.0 x1 slots |
|
| Storage | ||
| Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Network | ||
| LAN | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| BIOS | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1(4K @60HZ) | |

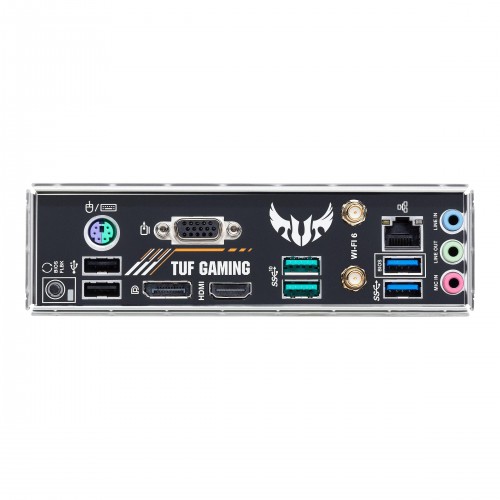

| USB Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 connector (supports USB Type C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| Display Port | 1 x DisplayPort 1.2 | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Internal I/O Ports | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous: 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance and Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Wireless Communication module | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1 | |
| Special feature | ASUS TUF PROTECTION - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| Warranty | ||
| Warranty | 3 Years | |

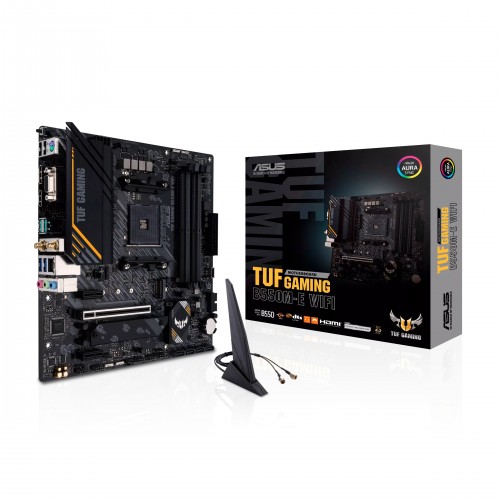

The new Asus TUF GAMING B550M-E Wi-Fi AM4 mATX Motherboard comes with AMD AM4 Socket ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, Asus TUF GAMING B550M-E Wi-Fi delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF GAMING B550M-E Wi-Fi is the perfect foundation for your next high-core-count battle rig. The onboard VRM of this utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. It provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. 2.5G onboard Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage of this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos, and enjoy faster file transfers. Turbo LAN is a network-optimization software for customizable packet prioritization. Asus TUF GAMING B550M-E Wi-Fi AM4 mATX Motherboard comes with 3 years of warranty.
