| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Memory | ||
| Number of Memory Slots | 4 DIMMs | |
| Channel Supported | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 128GB | |
| Supported Memory | Dual Channel Memory Architecture | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4 Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Expansion Slots | ||
| Expansion Slots | PCI AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots M.2 Socket Total supports 3 x M.2 slots |
|
| Storage | ||
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Audio | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| BIOS | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| Display Port | 1x DisplayPort | |
| Audio | 5 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special feature | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |
|
| Warranty | ||
| Warranty | 3 Years | |

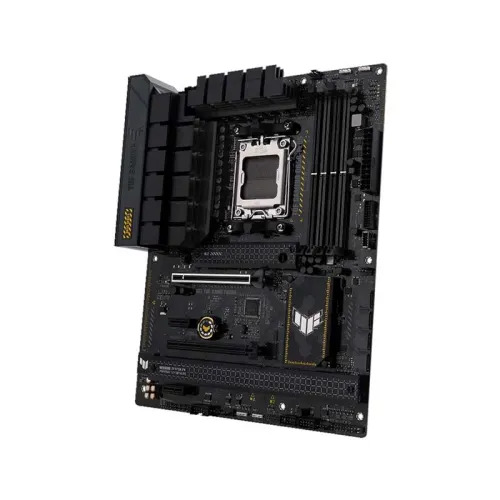

The new Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard combines all of the necessary components of the newest AMD Ryzen 7000-series CPUs with game-ready features and proven endurance. Asus TUF GAMING B650-PLUS exceeds expectations with rock-solid and reliable performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. TUF GAMING B650-PLUS has tough off-black and geometric design elements to highlight the durability and stability that characterize the TUF GAMING line. It offers a feature-rich high-performance gaming package that includes ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming environment. To experience superior performance, build your next setup using an AMD Ryzen 7000 Series processor and ASUS TUF GAMING motherboards. The AMD Ryzen 7000 Series puts you ahead of the game with up to 16 "Zen 4" cores and 32 threads, peak frequencies of up to 5.7GHz, and an 80MB cache. With AMD Socket AM5, you'll also have access to additional capabilities for gamers, such as DDR5 memory speed and PCIe 5.0 improved bandwidth. AMD Ryzen 7000 Series CPUs and AMD socket AM5 motherboards are overclockable, allowing you to customize your experience. Overclock your DDR5 memory with AMD EXPO technology to get even greater performance. Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard comes with 3 years of warranty.
