| Basic Information | ||
| Type | Mid Tower | |
| Material | Steel, Mesh, Plastic, Tempered Glass | |
| Motherboard Compatibility | Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) | |
| Side Panel Window | Tempered Glass | |
| Features | ||
| Expansion Slots | 7 slots | |
| Radiator Support | Top: 120mm, 140mm, 240mm, 280mm, 360mm (recommended maximum thickness: -55mm) Rear: 120mm Front: 120mm, 140mm, 240mm, 280mm, 360mm |
|
| Fan Support | Front: 3x 120mm, 2x 140mm Top: 3x 120mm, 2x 140mm Rear: 1x 120mm |
|
| Pre- Installed Fans | Rear: 1x 120mm 650~1800RPM SickleFlow PWM ARGB | |
| Drive Bays | 2.5" / 3.5" Drive Bays (Combo): 2 2.5" Drive Bays: 4 |
|
| I/O Port | 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 165mm/6.49" | |
| Maximum GPU Card Length | 410mm/16.1" | |
| Maximum PSU Length | 180mm/7.08", 295mm/11.61" (w/ HDD cage removed) | |
| Physical Specifications | ||
| Dimensions | 499.3 x 208.6 x 498mm | |
| Weight | 51.87L | |
| Color | Black | |
| Warranty Information | ||
| Warranty | N/A | |

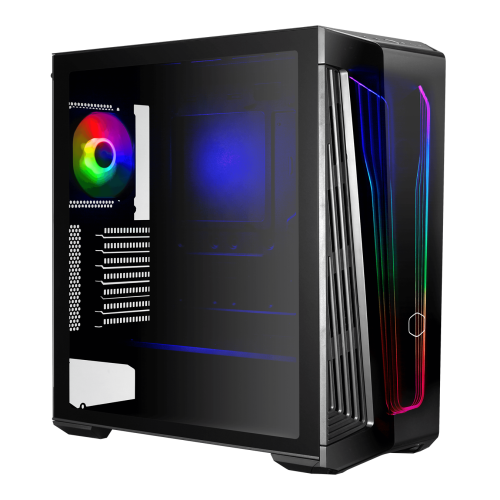

The Cooler Master MasterBox 540 ARGB Mid Tower Casing features a vibrant, iridescent design that covers the entire front panel. Bespoke ARGB strips emit a breathtaking show of light behind the glass façade. With the help of an included controller, the ARGB strips may be adjusted to match the internal system color scheme. They can also be customised to an infinite extent by syncing with the motherboard. ARGB lighting strips and a front diffuser are housed in the front panel, which was designed with inspiration from automobile lighting. This design element offers a distinctive take on traditional lighting since it is fused to the façade's DarkMirror coating and powered by a pogo pin connector. Software or the ARGB controller that comes with the package, which has special lighting presets pre-loaded, can be used to control the ARGB Ether Front Panel. Additionally, the controller is pre-routed to the front panel's RESET/ARGB button. To provide better access to the components during construction, the top panel can be removed completely. The installation of cooling solutions such as fans and radiators is made easier by ease of use. A USB 3.2 (Gen 2) Type-C port, two more USB 3.2 (Gen 1) ports, and a 3.5mm (audio + mic) headset jack are included with the I/O panel. Without the need for tools, the tempered glass side panel is easily removed thanks to pins that secure it. This allows for simple access to the internals. The tempered glass side panel can be further secured with the optional screw installation. High compatibility for liquid-cooled systems is ensured with support for up to seven 120mm fans and two 360mm radiators on the top and front panels, respectively. To keep ahead of the game, there is room for upgrades with support for up to a 180mm PSU, a 165mm CPU cooler, and a 410mm graphics card. The PSU cover has ventilation above the power supply location, which enables the installation of passively cooled power supplies as well as actively cooled units with the fan facing either the top or bottom. The Cooler Master MasterBox 540 ARGB Mid Tower Casing has no warranty.
