| Main Feature | ||
| Antenna | 2× Internal Wi-Fi Antennas 2× External Detachable 4G Antennas |
|
| Buttons | Reset Button | |
| Frequency | 2.4 GHz | |
| Wireless | 2.4 GHz Wi-Fi Speed: 300 Mbps 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 2× Internal Detachable Wi-Fi Antennas Connector: RP-SMA Female Wi-Fi Transmission Power: <20 dBm (2.4 GHz) Range Performance: Max: 170 m (558 ft) Park: 150 m (492 ft) Street: 30 m (98 ft) Woods: 30 m (98 ft) |
|
| Interface | Physical Buttons: Reset Button 10/100 Mbps RJ45 Ports: 1 Ethernet Notes: Accepts PoE powering LED : System Internet LAN Wi-Fi Cellular Signal Strength Power Input PoE via Ethernet Port |
|
| Data Rate | 300 Mbps (2.4 GHz) | |
| Standards | 4G Cat. 4 | |
| Power | Power Methods: Passive PoE Passive PoE: 24V Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC Output: 24V 0.5A DC Max Power Consumption (W): 8W Idle Power Consumption (W) : 4W |
|
| Security | WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK | |
| WAN Type | 4G/Dynamic IP/Static IP/PPPoE | |
| Environment | Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Physical Specifications | ||
| Dimensions | Device Body: 240×100×53.7 mm 9.45×3.94×2.11 inches Each Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches |
|
| Weight | 420 g | |
| Color | White | |
| Warranty Information | ||
| Warranty | 1 Year Warranty | |

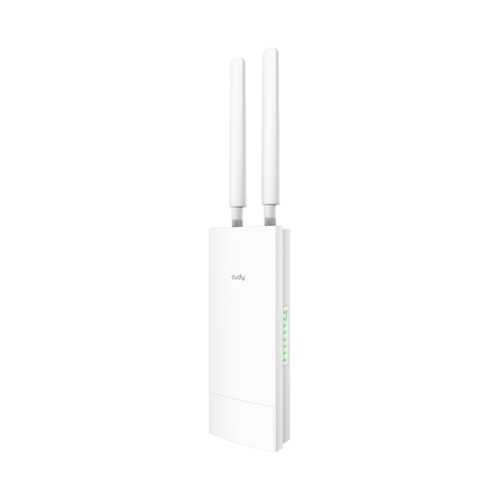

The cutting-edge Cudy LT400 Outdoor LTE Module is designed to provide seamless, quick internet connectivity in a range of environments. There are two variants of this flexible LTE router available: the EU version (EC200A-EL) and the US version (EC25-AFXD), each intended for a certain region. The EU model supports LTE-FDD bands B1/B3/B7/B8/B20/B28A, LTE-TDD bands B38/B40/B41, and WCDMA bands B1/B8, whereas the US model supports LTE-FDD bands B2/B4/B5/B12/B13/B14/B66/B71 and WCDMA bands B2/B4/B5.With its 64 Mbit (8 MB) Flash and 512 Mbit (64 MB) DDR, the LT400 guarantees reliable operation and effective data processing. A 10/100Mbps WAN/LAN RJ45 connector with 24V/0.5A passive PoE, a reset button, and a nano SIM slot for flexible connectivity options are all part of its extensive interface. Clear status updates for system functionality, Ethernet, 2.4GHz and 5GHz WiFi, internet connectivity, and signal strength are provided by LED indicators.This LTE router's sturdy dual internal Wi-Fi antennae and its two external detachable 4G antennas with a 5 dBi gain ensure strong and dependable signal reception. Operating at 2.4 GHz on the IEEE 802.11n standard, the LT400 offers a high-speed signal rate of up to 300 Mbps, ensuring stable and speedy internet connection. The device supports WPA-PSK, WPA2-PSK, and WPA-PSK/WPA2-PSK for secure wireless communications.Several WAN types (4G, Dynamic IP, Static IP, PPPoE), extensive DHCP options, and compatibility with more than 15 dynamic DNS providers are just a few of the advanced features of the LT400. Rich NAT functionality including port forwarding, port triggering, UPnP, and DMZ are also included. The router serves as both a VPN server and client, supporting PPTP, L2TP, OpenVPN, WireGuard, IPSec, and Zerotier, enabling secure remote access.The Cudy LT400 is designed to endure extreme weather conditions. It is IP65 approved for outdoor use and can function in temperatures between -20 and 60°C, with an extended temperature range of -40 to 65°C. Detachable 4G antennae, a passive PoE converter, an Ethernet cable, a pole installation attachment, and a short installation guide are all included in the package, making setup simple. The ideal option for dependable and fast outside internet access, the LT400 outside LTE Module will improve your internet connectivity.The Cudy LT400 Outdoor 4G Cat4 N300 Wi-Fi Outdoor Router comes with a 1-year warranty.
