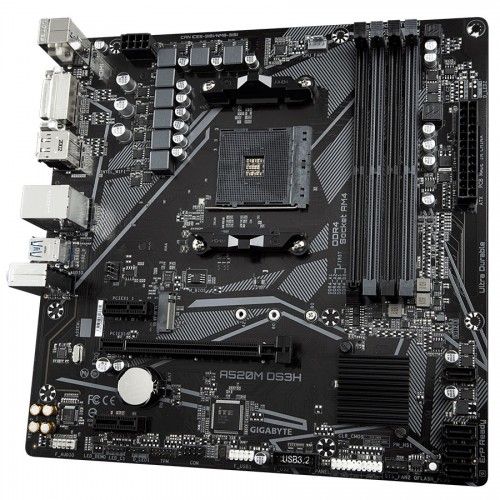

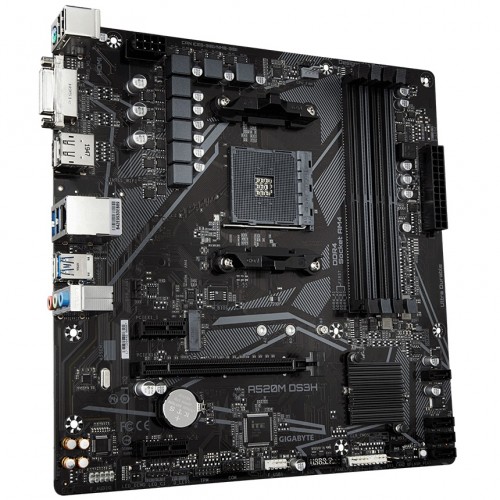

| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM | |
| Channel Supported | Dual-Channel Memory Architecture | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to 3 displays at the same time |
|
| Max Shared Memory | 16 GB | |
| Expansion Slots | ||
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Audio | ||
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| BIOS | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |

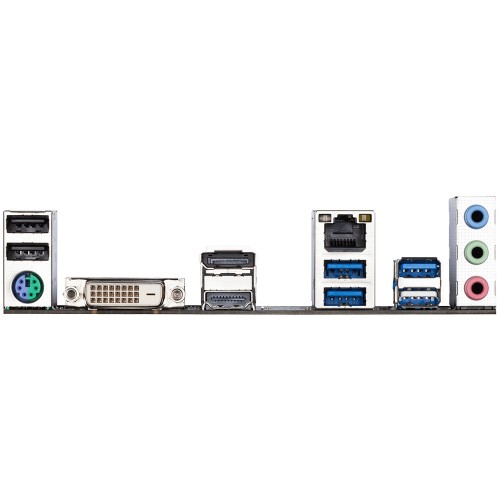

| USB Ports | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| Others | ||
| Special feature | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Warranty | ||
| Warranty | 3 Years | |
GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. HDMI 2.1, which is backward compatible with HDMI 2.0/ 1.4 and offers 48 Gb/s of bandwidth – twice times more than the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. The GIGABYTE A520M DS3H Micro-ATX AMD AM4 Motherboard comes with 3 years of warranty.
