| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
|
| Chipset | AMD A620 | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm | |
| Memory | ||
| Number of Memory Slots | 2 x DIMM | |
| Channel Supported | DDR5 | |
| Maximum Memory | 96 GB | |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Expansion Slots | ||
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Storage | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors |
|
| Network | ||
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI | |

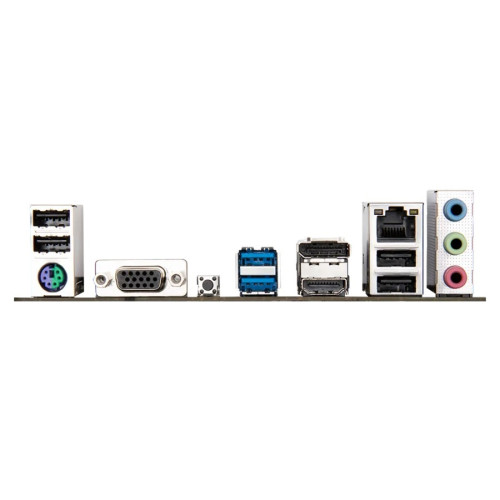

| USB Ports | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
|
| DVI-D (s) | 1 x DisplayPort RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special feature | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

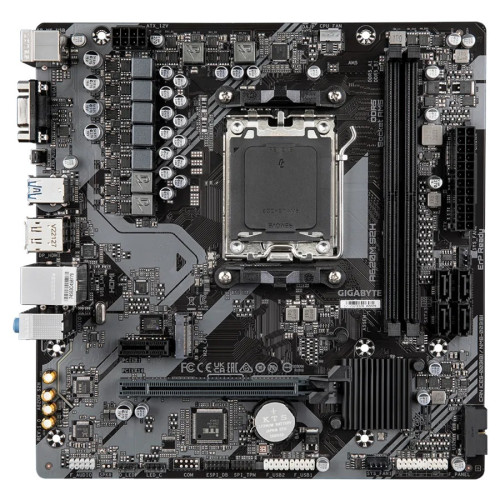

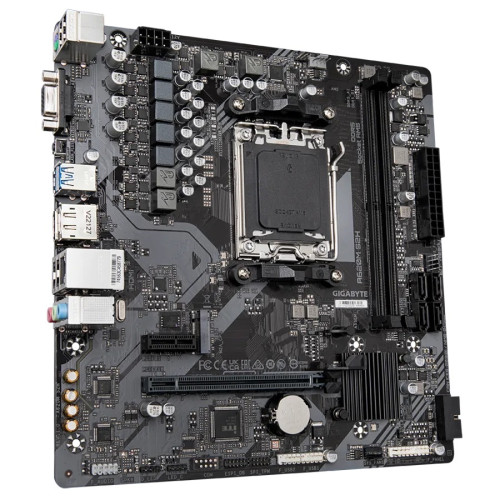

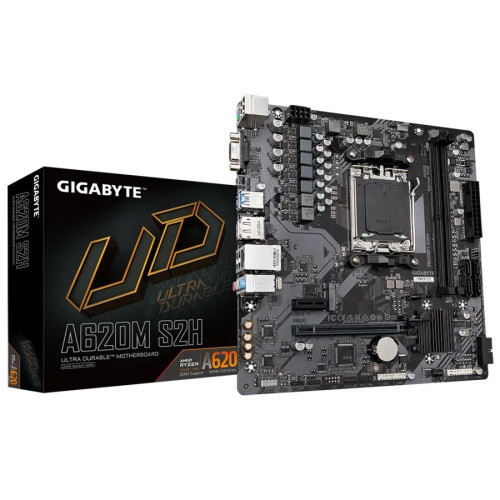

The GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard uses a 5+2+2 phases digital PWM + Low RDS (on) MOSFETs design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, as well as enhanced system performance and ultimate hardware scalability. GIGABYTE A620 Motherboards are ready to work with PCIe 4.0 devices, which are expected to experience twice the bandwidth of the current PCIe 3.0 devices. To reach high speeds and maintain good signal integrity, GIGABYTE R&D uses a low-impedance PCB to provide maximum performance. GIGABYTE is offering a tested and proven platform where the memory overclocking capability is able to reach 6400 and beyond. All users need to do to achieve this extreme memory performance boost is ensure that their DDR5 memory modules are AMD EXPOTM or Intel® XMP capable and that the EXPO or XMP function is activated and enabled on their GIGABYTE motherboard. Smart Fan 6 contains several unique cooling features that ensure gaming PCs maintain their performance while staying cool and quiet. Multiple fan headers can support PWM/DC fans and pumps, and users can easily define each fan curve based on different temperature sensors across the board via an intuitive user interface. GbE LAN features a network bandwidth management application that helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. The GIGABYTE A620M S2H AMD AM5 Micro-ATX Motherboard has a 3-year warranty.
