| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processor L3 cache varies with CPU |
|
| Chipset | Intel B660 Express Chipset | |
| Form Factor | Micro ATX 24.4cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 DIMMs | |
| Channel Supported | DDR5 | |
| Maximum Memory | 192 GB (48 GB single DIMM capacity) | |
| Supported Memory | Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Storage | ||
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
|
| Network | ||
| LAN | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Audio | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI 2.1 port | |
| USB Ports | Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| Display Port | 1 x DisplayPort | |
| Audio | 1 x front panel audio header |
|
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x HDMI 2.1 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special feature | Support for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Warranty | ||
| Warranty | 3 Year Warranty | |

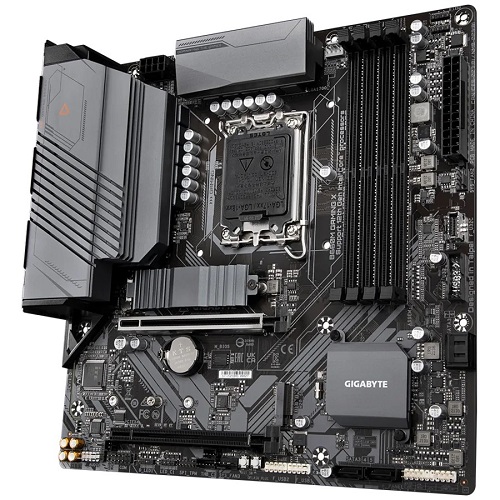

The Gigabyte B660M GAMING X DDR5 13th and 12th Gen mATX Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, DDR5 Extreme MEMORY Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus. With technology moving so fast, GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. GIGABYTE B660 Series motherboards come with upgraded power solutions, the latest storage standards, and outstanding connectivity to optimize performance for gaming. Supports 13th/12th Gen Intel® Core™ Series Processors. Dual-Channel Non-ECC Unbuffered DDR5, 4 DIMMs. 8+1+1 Hybrid Digital VRM Design with DrMOS DDR5 Extreme Memory Design with Shielded Memory Routing. Fully Covered Thermal Design with High Coverage VRM Heatsinks. Fast 2.5 GbE Gaming LAN with Bandwidth Management. Dual Ultra-Fast NVMe PCIe 4.0 x 4 M.2 with Thermal Guard USB 3.2 Gen 2 Type-C® for Fast and Versatile Connections. Pre-installed IO shield for easy and quick installation. High-quality audio capacitors and an audio Guard. RGB FUSION 2.0 supports Addressable LED and RGB LED Strips. Smart Fan: 6 Features Multiple Temperature Sensors and Hybrid Fan Headers with Fan Stop Q-Flash Plus Update the BIOS without installing the CPU, memory, or graphics card. The Gigabyte B660M Gaming X DDR5 13th and 12th Gen mATX Motherboard has a 3-year warranty.
