| Basic Information | ||
| Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU |
|
| Chipset | Intel H81 Express | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
|
| Memory | ||
| Number of Memory Slots | 2 x 1.5V DIMM | |
| Channel Supported | Dual channel DDR3 memory architecture | |
| Maximum Memory | 16 GB Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200 |
|
| Max Shared Memory | 1 GB | |
| Expansion Slots | ||
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) D-Sub |
|
| Storage | ||
| Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices |
|
| Network | ||
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |
| Wireless | No | |
| Audio | ||
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
|
| BIOS | ||
| BIOS | 2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| USB Ports | Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| TPM (Trusted Platform Module ) | N/A | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
|
| Warranty | ||
| Warranty | 3 Years | |

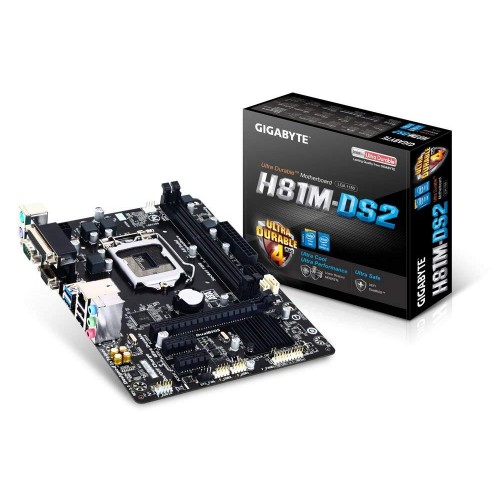

Gigabyte GA-H81M-DS2 Micro ATX ultra durable motherboard has the compatibility with 4th gen Intel processors. This board also supports dual channel DDR3 maximum 16GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing a resolution of 1920x1200 Hz for D-Sub port. This basic motherboard has the facility of GIGABYTE On/Off Charge™ for USB devices, LAN with high ESD Protection and USB 3.0 ports with GIGABYTE 3x USB power. This All solid capacitors design board also contain GIGABYTE UEFI DualBIOS™ Technology and LPT, COM, D-SUB port on rear panel.
