| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors | |
| Chipset | AMD X570 | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture |
|
| Maximum Memory | AMD Ryzen 5000 Series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 4000 G-Series processors: Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 3000 Series processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors: Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies * For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only. |
|
| Max Shared Memory | 16 GB | |
| Expansion Slots | ||
| Expansion Slots | PCI: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support PCIe 4.0 x8 mode AMD Ryzen 4000 G-Series Processors/AMD Ryzen 2000 Series Processors support PCIe 3.0 x8 mode AMD Ryzen 3000 G-Series Processors/AMD Ryzen 2000 G-Series Processors do not support this slot * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0* /3.0 x4 mode * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. M.2 Socket: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs: |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/AMD Ryzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Network | ||
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | BLUETOOTH 5.1 | |
| Audio | ||
| Audio | Internal: 1 x front panel audio header Back Panel: 5 x audio jacks Realtek ALC1220-VB Audio CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |

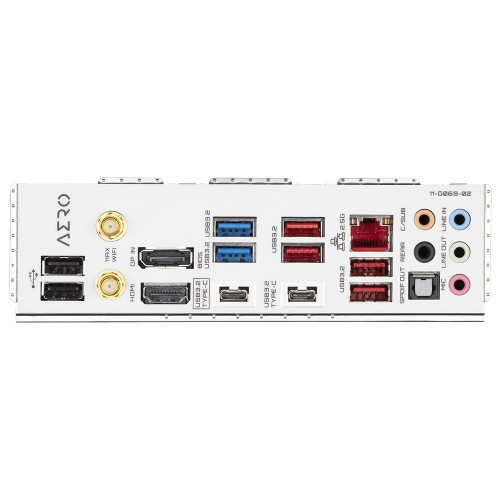

| USB Ports | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2x2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Wireless Communication module | Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Special feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Warranty | ||
| Warranty | 03 years | |
The Gigabyte X570S AERO G AMD ATX Motherboard supports Ryzen 5000, 4000 G, 3000, 3000 G, 2000, 2000 G series processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules and non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. It delivers reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. GIGABYTE VisionLINK is an extension of your idea and creation. Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience than ever. GIGABYTE VisionLINK lets you not only without cable clutter, but also the benefit of data, video, and power charging simultaneously. VisionLINK equips with a unique data delivery capability, the DisplayPort Alternate Mode for video signal, and the 60W Power Delivery design for your device's settings. It is a perfectly tailored connectivity for creators and professional artists. It features High-bandwidth and low-latency network support by Intel 2.5GbE LAN and Wi-Fi 6 2x2 802.11ax with all-new antenna support for better signal. It has 4 Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards. It features an effective cooling solution design for better thermal dissipation and Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration. Q-Flash Plus Updates BIOS without Installing the CPU, Memory, and Graphics Card. The Gigabyte X570S AERO G comes with a 3-years warranty.
