| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors | |
| Chipset | AMD X570 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
|
| Memory | ||
| Number of Memory Slots | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies For AMD Ryzen 5000 Series Processors/AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 Series Processors/AMD Ryzen 2000 Series Processors only. |
|
| Expansion Slots | ||
| Expansion Slots | PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x16 mode AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x16 mode AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors support PCIe 3.0 x8 mode 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMDRyzen 5000 Series Processors/AMDRyzen 3000 Series Processors support PCIe 4.0 x8 mode AMDRyzen 4000G-SeriesProcessors/AMDRyzen 2000 Series Processors support PCIe 3.0 x8 mode AMDRyzen 3000G-SeriesProcessors/AMDRyzen 2000 G-Series Processors do not support this slot * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0* /3.0 x4 mode * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector. M.2 Socket: 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs 2 x M.2 connectors (M2C_SB/M2D_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs |
|
| Storage | ||
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 4000 G-Series Processors/AMD Ryzen 3000 G-Series Processors/AMDRyzen 2000SeriesProcessors/AMDRyzen 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 2 x M.2 connectors (M2C_SB/M2D_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs * For AMD Ryzen 5000 Series Processors/AMD Ryzen 3000 Series Processors only. 6 x SATA 6Gb/s connectors, integrated into the Chipset: Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Network | ||
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | BLUETOOTH 5.2 | |
| Audio | ||
| Audio | Internal: 1 x front panel audio header Back Panel: 5 x audio jacks |
|
| BIOS | ||
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Ports & Connectors | ||

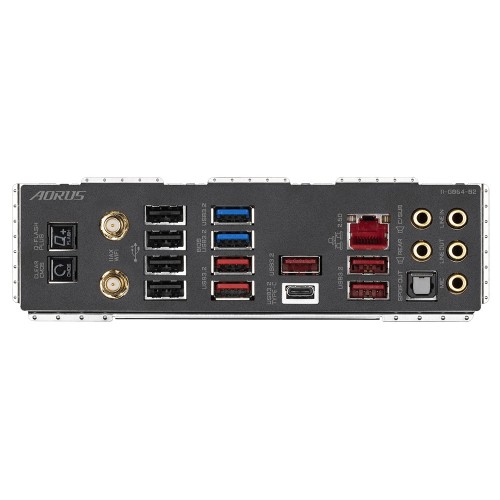

| USB Ports | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset+ASMedia USB 3.2 Gen 2x2 Controller: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports, available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt add-in card connector 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS jumper Voltage Measurement Points |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Wireless Communication module | Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Special feature | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Warranty | ||
| Warranty | 03 years | |

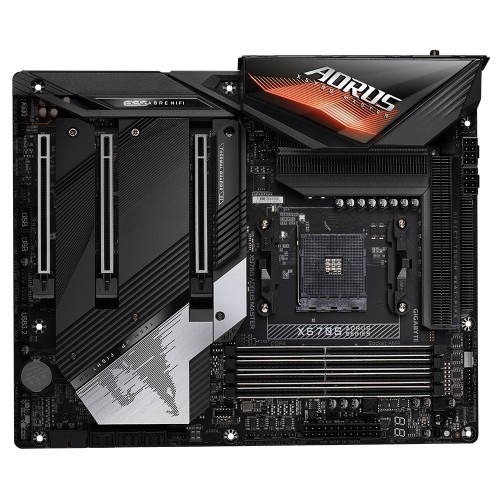

The Gigabyte X570S AORUS MASTER AMD ATX Motherboard Supports AMD Ryzen 5000 Series/ Ryzen 4000 G Series/ Ryzen 3000 Series/ Ryzen 3000 G Series/ Ryzen 2000 Series/ Ryzen 2000 G Series Processors. It is based on AMD X570 Chipset. It has 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory. It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings. It features Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage and Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate. The Gigabyte X570S AORUS MASTER is equipped with Intel WiFi 6E 802.11ax & BT 5.2 and Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. This motherboard is supported with Blazing Fast Intel 2.5GbE LAN with cFosSpeed. Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than the previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals.125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB, and WIMA Audio Capacitors. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. It supports Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The Gigabyte X570S AORUS MASTER comes with a 3-years warranty.
