| Basic Information | ||
| Supported CPU | 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors | |
| Chipset | INTEL B760 | |
| Form Factor | M-ATX (245mm x 190mm) | |
| Memory | ||
| Number of Memory Slots | 2x DDR5 | |
| Channel Supported | Supports Dual-Controller Dual-Channel mode |
|
| Maximum Memory | 96GB | |
| Supported Memory | DDR5 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Expansion Slots | ||
| Expansion Slots | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot |
|
| Storage | ||
| Supported Storage | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 3 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | Realtek RTL8111H 1G LAN | |
| Audio | ||
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI | |
| USB Ports | *Front USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 Type A 2x USB 2.0 |
|
| Display Port | 1x VGA | |
| RAID | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2 x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 2-Pin F_PANEL 1x 3-Pin SPDIF 1x 12V 4-Pin RGB |
|
| Warranty | ||
| Warranty | 3-year Warranty | |

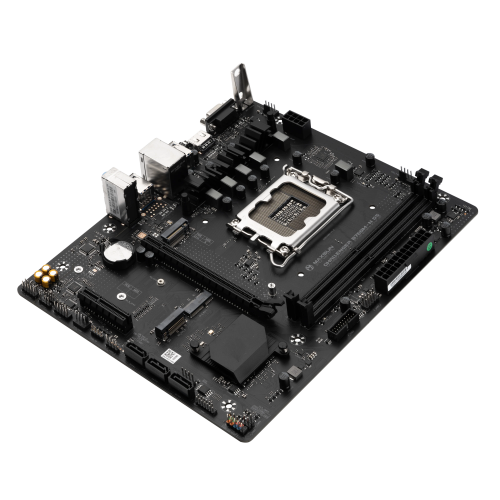

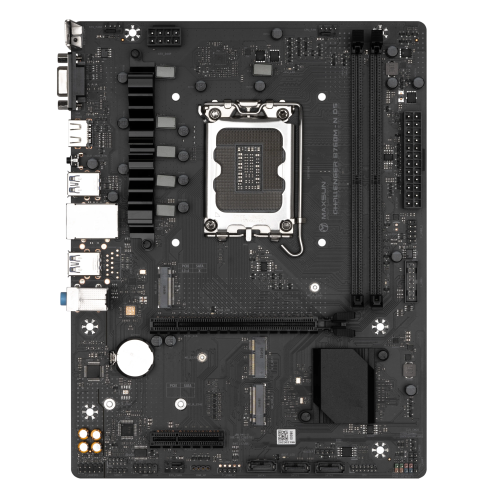

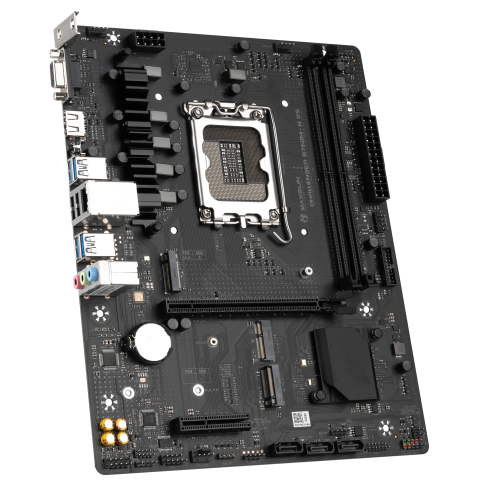

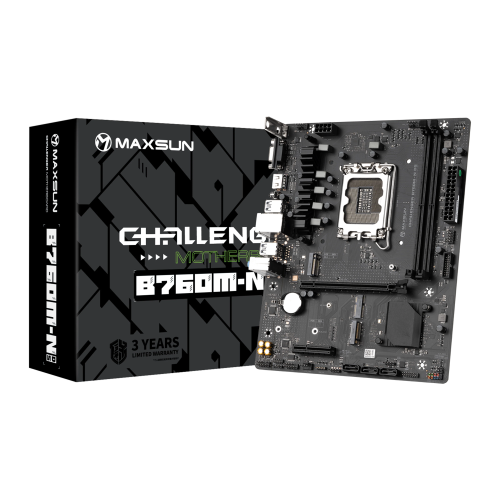

The MAXSUN Challenger B760M-N D5 motherboard is a powerhouse designed for the latest 12th and 13th Gen Intel processors, offering robust performance with its Intel B760 chipset and LGA 1700 socket. It supports up to 96GB of DDR5 memory at speeds up to 6000MHz, ensuring smooth multitasking and handling of heavy applications. With versatile graphics support, dual M.2 slots, multiple USB ports, and Realtek 1G LAN, it provides comprehensive connectivity and expansion options. Its compact M-ATX form factor and durable design make it ideal for enthusiasts, gamers, and creators looking to build or upgrade their systems with cutting-edge technology.MAXSUN Challenger B760M-N D5 12th/13th Gen Motherboard comes with 3 years warranty
