| Basic Information | ||
| Supported CPU | Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors | |
| Chipset | INTEL Z790 | |
| Form Factor | m-ATX | |
| Memory | ||
| Number of Memory Slots | 4 | |
| Channel Supported | Supports Dual-Controller Dual-Channel mode | |
| Maximum Memory | 192GB | |
| Supported Memory | 7600 (OC)/ 7400 (OC)/7200 (OC)/7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Expansion Slots | ||
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot |
|
| Storage | ||
| Supported Storage | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280(supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | Realtek RTL8125BG 2.5G LAN | |
| Wireless | Intel Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|

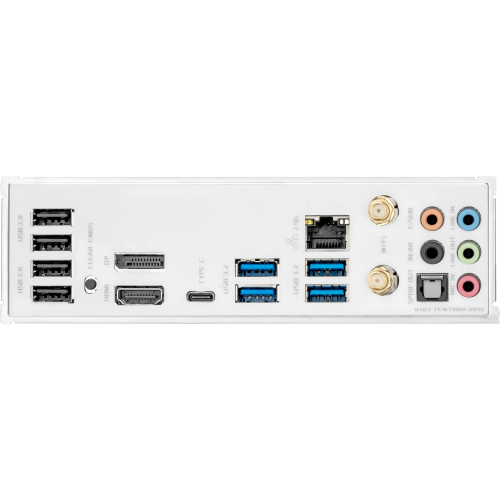

| Ports & Connectors | ||
| HDMI | 1x HDMI port |
|
| Display Port | 1x DisplayPort 1.4 | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 2x 8-pin+12VPower Connector(CPU_PWR) 1x 4-pin CPU Fan 5 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin SPEAKER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x 2-pin Clear CMOS 1x Front Audio 1x COM_A Port |
|
| Others | ||
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Warranty | ||
| Warranty | 3 Year Warranty | |
The MAXSUN Terminator Z790M D5 ICE m-ATX DDR5 Motherboard is a high-performance MicroATX motherboard designed for enthusiasts and professionals seeking exceptional performance and versatility. Powered by the Intel Z790 chipset, it supports the latest 12th, 13th, and 14th generation Intel Core processors, ensuring future-proof technology. With four DDR5 memory slots supporting up to 192GB of RAM and overclocking capabilities up to 7000MHz+, this motherboard delivers blazing-fast performance. It features advanced cooling solutions with Passive Rin Frost Thermal Armor and low-noise fans, ensuring optimal performance under heavy loads. High-speed connectivity is provided by dual 20Gbps USB 3.2 Gen 2x2 Type-C ports, 2.5G LAN, and Wi-Fi 6E. The motherboard also offers extensive storage expansion with five M.2 slots supporting PCIe 4.0 and NVMe, along with robust power delivery through its 8+1+1 phase power design with 50A Dr.Mos. The sleek silver-white theme, LED debug lights, and compact MicroATX form factor make it a stylish and practical choice for any build MAXSUN Terminator Z790M D5 ICE m-ATX DDR5 Motherboard Comes with 3 Year Warranty.
