| Basic Information | ||
| Supported CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update. | |
| Chipset | AMD B520 |
|
| Form Factor | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|
| Memory | ||
| Number of Memory Slots | Dual-channel memory architecture | |
| Channel Supported | 2x DDR4 memory slots | |
| Maximum Memory | 64GB | |
| Graphics | ||

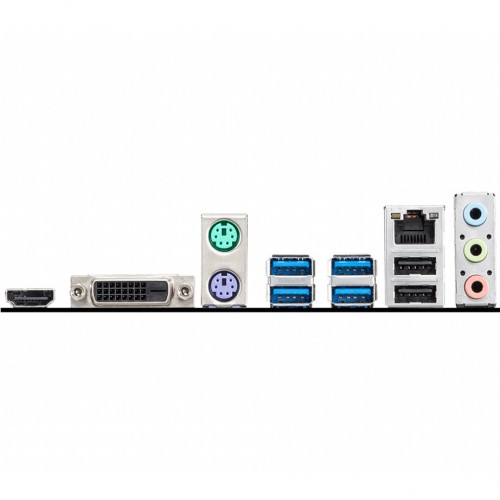

| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI: 1x PCIe 3.0 x1 slot :1x PCIe x16 slot M.2 Socket : 1x M.2 slot (Key M) (from AMD Processor) : Supports PCIe 3.0 : Supports SATA 6Gb/s : Supports 2242/ 2260/ 2280 storage devices |
|
| Storage | ||
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Network | ||
| LAN | 1x Realtek RTL8111H Gigabit LAN controller | |
| Audio | ||
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Ports & Connectors | ||
| USB Ports | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| Warranty | ||
| Warranty | 03 Years | |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI OC LAB does not merely work hard on extreme overclocking. Compared to the A320 motherboard memory A-XMP profile, MSI does have great improvement in performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU but also creating the perfect conditions for your CPU overclocking.
