| Basic Information | ||
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics/ 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
| Chipset | AMD B450 Chipset | |
| Form Factor | ATX 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Memory | ||
| Number of Memory Slots | 4 DIMMs | |
| Channel Supported | DDR4 Dual channel memory architecture | |
| Maximum Memory | 64GB | |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
|
| Graphics | ||
| Graphics | 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors Supports 2-Way AMD CrossFire Technology |
|
| Max Shared Memory | Maximum shared memory of 2048 MB | |
| Expansion Slots | ||
| Expansion Slots | PCI 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots M.2 Socket 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device |
|
| Storage | ||
| Supported Storage | AMD CPU 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device AMD B450 Chipset 4 x SATA 6Gb/s ports |
|
| Network | ||
| LAN | 1 x Realtek 8111H Gigabit LAN controller | |
| Audio | ||
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|

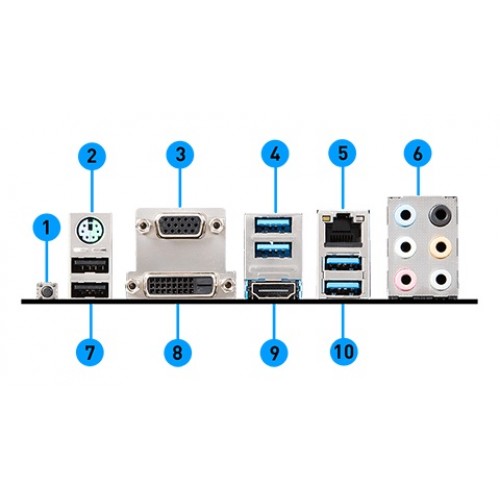

| Ports & Connectors | ||
| HDMI | 1x HDMI 1.4 port | |
| USB Ports | AMD B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| DVI-D (s) | 1x DVI-D port | |
| Audio | Audio connectors | |
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Internal I/O Ports | AMD B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| Warranty | ||
| Warranty | 3 Year Warranty | |

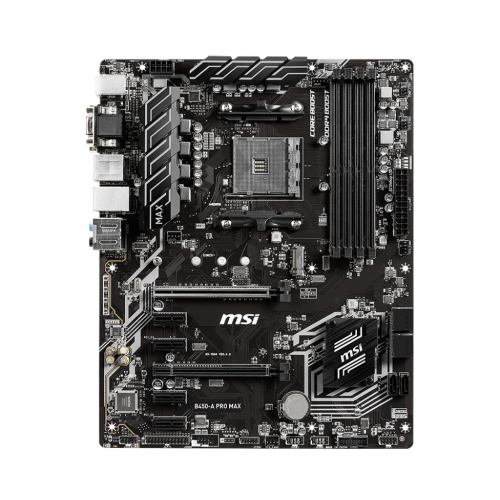

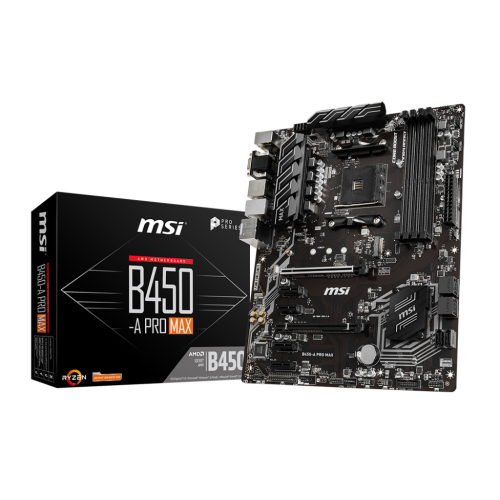

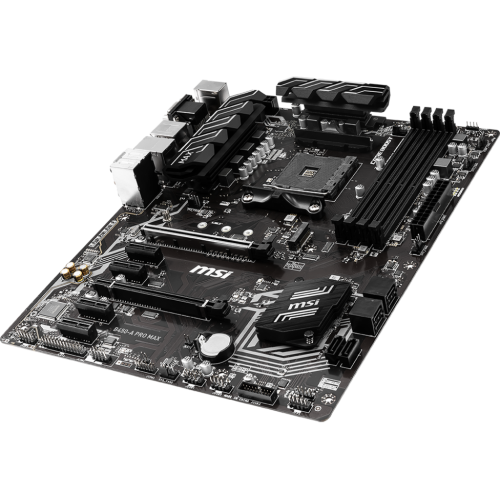

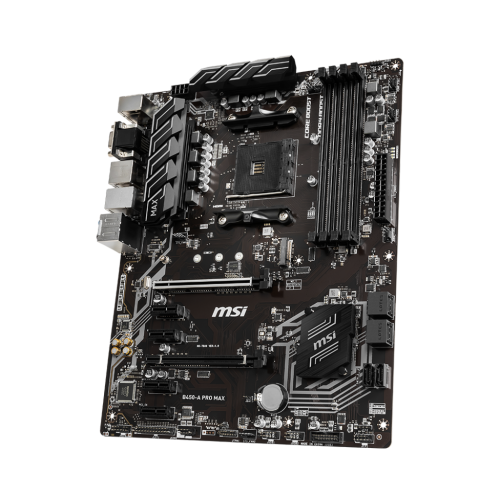

The MSI B450-A PRO MAX DDR4 AM4 AMD ATX Motherboard is equipped with Core Boost, DDR4 Boost, Turbo M.2, and a USB 3.2 Gen2 connector. Supports 1st, 2nd, and 3rd Gen AMD Ryzen/Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and Supports DDR4 Memory, up to 4133 (OC) MHz. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe-based SSDs. DDR4 Boost: Fully isolated, shielded, and optimized DDR4 PCB design to give your DDR4 memory a performance boost. Audio Boost: Reward your ears with studio-grade sound quality. Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance, Multi-GPU: With steel armor PCI-E slots. Supports 2-Way AMD Crossfire. AMD Turbo USB 3.2 Gen2: Powered by an AMD USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and the fastest USB speeds. The MSI B450-A PRO MAX DDR4 AM4 AMD ATX Motherboard has a 3-year warranty.
