| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Chipset | Intel B560 chipset | |
| Form Factor | Miro-ATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) |
|
| Memory | ||
| Number of Memory Slots | 2x memory slots | |
| Maximum Memory | 64GB | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | PCI: 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chpiset) M.2 Socket: 1x M.2 slot (Key M) Supports up to PCIe 4.0x4 (From CPU) Available on 11th Gen Intel CPU Supports PCIe 3.0x4 (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
|
| Network | ||
| LAN | 1x Realtek 8125B 2.5Gbps LAN controller |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| BIOS | ||
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| USB Ports | 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector |
|
| Warranty | ||
| Warranty | 3 Years Warranty | |

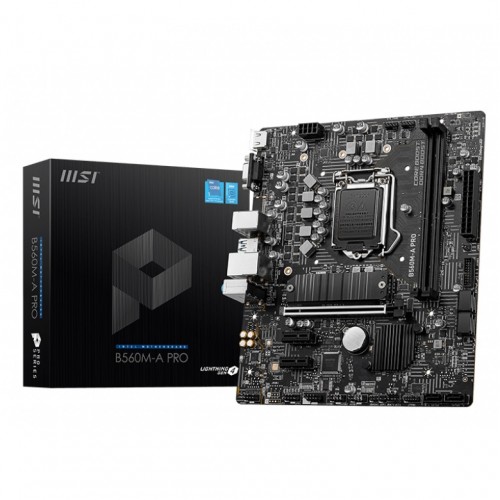

The MSI B560M-A PRO Intel 11th Gen mATX Motherboard delivers an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The motherboard's heatsink design, M.2 SHIELD FROZR, is the next-generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI OC Lab does not merely work hard on extreme overclocking. Compared to the B460 motherboard memory XMP profile, MSI has made great improvements in performance and efficiency for the B560. It is easy to enable the XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design, which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs but also creating the perfect conditions for your CPU overclocking. The MSI B560M-A PRO Intel 11th Gen mATX Motherboard has a 3-year warranty.
