| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 |
|
| Form Factor | m-ATX 243.84mmx243.84mm |
|
| Memory | ||
| Number of Memory Slots | 4x DIMM |
|
| Channel Supported | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
|
| Maximum Memory | 192GB | |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
|
| Graphics | ||
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, the maximum resolution of 4K 60Hz* |
|
| Expansion Slots | ||
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Storage | ||
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Audio | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High-Performance Audio Supports S/PDIF output |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI 1.4 | |
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| Display Port | 1x DisplayPort |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| Others | ||
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Special feature | 4x EZ Debug LED | |
| Warranty | ||
| Warranty | 3 years | |

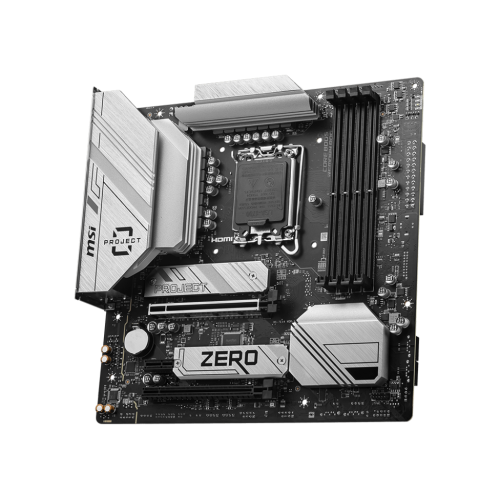

The MSI B760M PROJECT ZERO DDR5 m-ATX Motherboard is a powerful tool created to further improve your computer experience. This motherboard supports a wide selection of processors, including Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, all of which are well suited to the LGA 1700 socket. The B760M PROJECT ZERO has the latest technology and supports DDR5 memory, which can reach performance of up to 7800+(OC) MHz. Its Enhanced Power Planning has a 12+1+1 Duet Rail Power System, two 8-pin CPU power connectors, Core Boost, and Memory Turbo for optimal performance in demanding workloads and applications. Enjoy yourself in a lightning-fast gaming experience using innovations like the PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. The Premium Thermal Solution, which comprises the Extended Heatsink Design and M.2 Shield Frozr, is intended for high-performance systems, allowing for sustained, efficient workloads while maintaining temperature management. Audio enthusiasts will like the Audio Boost option, which gives a studio-grade sound experience while boosting the overall audio quality of your system. The motherboard also has a high-quality PCB with a 6-layer architecture constructed of 2oz thicker copper and server-grade components, which ensures endurance and dependability over time. The MSI B760M PROJECT ZERO m-ATX Motherboard strikes a perfect mix of performance, power efficiency, and dependability, making it an ideal choice for gamers, content creators, and professionals alike. The MSI B760M PROJECT ZERO DDR5 m-ATX Motherboard comes with a 3-year warranty.
