| Basic Information | ||
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
|
| Memory | ||
| Number of Memory Slots | 2x DDR4 memory slots | |
| Channel Supported | Dual channel memory architecture | |
| Maximum Memory | Support up to 64GB | |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Expansion Slots | ||
| Expansion Slots | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1) |
|
| Storage | ||
| Supported Storage | 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
|
| Network | ||
| LAN | 1x Intel I219V 1Gbps LAN controller | |
| Audio | ||
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
|
| Ports & Connectors | ||
| HDMI | 1x HDMI 2.1 | |
| USB Ports | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 4x EZ Debug LED |
|
| Warranty | ||
| Warranty | 3 years | |

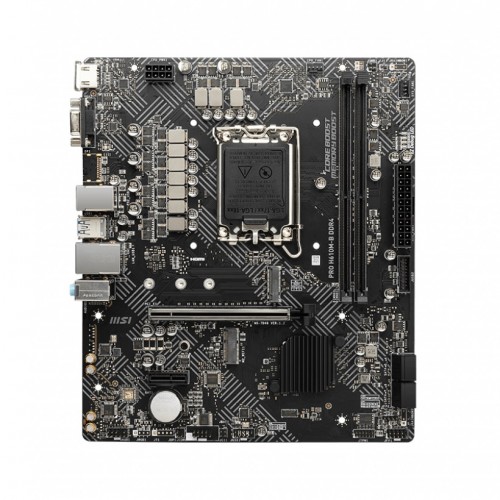

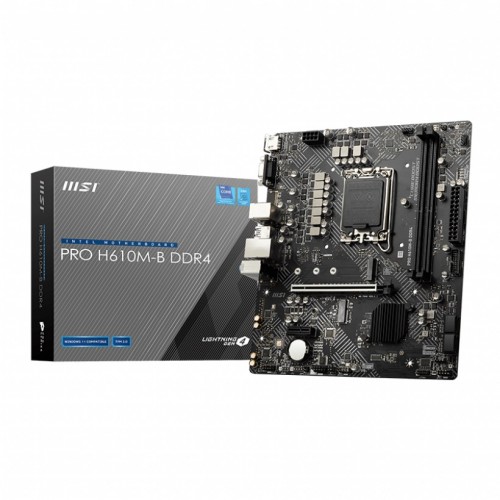

The new MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard has support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. MSI PRO H610M-B DDR4 comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. PRO H610M-B has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. PRO H610M-B DDR4 is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. This motherboard has smart fan 6 features multiple temperature sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub ports for multiple displays. MSI PRO H610M-B DDR4 12th Gen Micro-ATX Motherboard comes with 3 years of warranty.
