| Basic Information | ||
| Type | Mid Tower | |
| Material | SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only) | |
| Motherboard Compatibility | Mini-ITX, Micro-ATX, ATX | |
| Side Panel Window | Tempered Glass Panel | |
| Features | ||
| Expansion Slots | 7 | |
| Front Ports | 1 x USB 3.2 Gen 1 Type-A: 1 x USB 3.2 Gen 2 Type-C 1 x Headset Audio Jack |
|
| Radiator Support | Front: Up to 280mm Top: Up to 240mm Rear: Up to 120mm |
|
| Fan Support | Front: 2 x 120mm / 2 x 140mm Top: 2 x 120mm Rear: 1 x F Series Quiet 120mm (Case Version) included Bottom: 1 x F Series Quiet 120mm (Case Version) included |
|
| Pre- Installed Fans | Front: 1 x 120 mm Rear: 1 x 120 mm |
|
| Drive Bays | 2.5": 1+1 3.5": 1 |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 165 mm | |
| Maximum GPU Card Length | 365 mm | |
| Physical Specifications | ||
| Dimensions | Height: 464mm (With Feet) Width: 227mm Depth: 446mm |
|
| Weight | 7.01 kg | |
| Color | White | |
| Warranty Information | ||
| Warranty | No Warranty | |

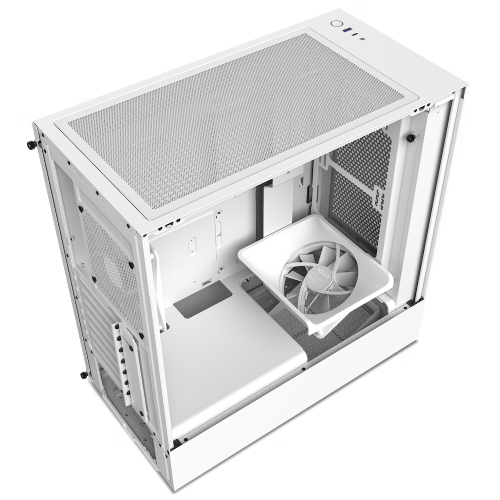

The NZXT H5 Flow Compact Mid-Tower Casing White includes a perforated front panel to offer an additional dimension of airflow for increased cooling. Because of its improved thermal efficiency and simplified cable management, the H5 Flow is an excellent choice for the majority of applications. All steel and tempered glass panels may be removed for 360° access. Mini-ITX, Micro-ATX, and ATX motherboards may all be mounted with enough room. Powerful graphics cards up to 14.3" long can fit in seven full-sized expansion slots while the rest of your components remain cool. The H5 Flow includes two 120mm fans, one at the rear and one at the bottom of the chassis. You get a single 3.5mm headset audio jack, one USB-C 3.2 Gen 2 connection, one USB-A 3.2 Gen 1 port, and compatibility for a number of peripherals like controllers and headsets. Ten cable ties and installation screws are supplied. The NZXT H5 Flow Compact Mid-tower Airflow Casing is a compact mid-tower airflow casing. With an ideally oriented F120Q fan positioned at the bottom, you can achieve dedicated GPU cooling. The vented top panel vents hot air from the case and can accommodate up to two 120mm fans or one 240mm radiator. For further thermal performance, the perforated front panel may accommodate up to two 140mm fans or one 280mm radiator. The NZXT H5 Flow Compact Mid-Tower Casing White has no warranty.
