| Main Feature | ||
| Antenna | Built-in omnidirectional antenna (two 2.4 GHz and two 5 GHz antennas) Antenna Gain: 2.4 GHz radio: 4 dBi 5 GHz radio: 6 dBi |
|
| Buttons | 1 x Reset button | |
| Frequency | Dual-radio and up to four spatial streams: 2.4 GHz/5 GHz, two spatial streams, 2x2 MU-MIMO 5 GHz, two spatial streams, 2x2 MU-MIMO |
|
| Wireless | 802.11b/g/n/ax, Wi-Fi 6 | |
| Interface | 1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard 1 x GE SFP port 1 x RJ45 console port (serial console port) 1 x multi-color system status LED 3 x single-color RSSI LEDs |
|
| Data Rate | 2.4 GHz, 574 Mbps 5 GHz, 2.4 Gbps |
|
| Power | Power Supply: 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently. PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Power Consumption: 12.95 W |
|
| Environment | Operating temperature: –40°C to +65°C (–40°F to +149°F) Storage temperature: –40°C to +85°C (–40°F to +185°F) Operating humidity: 0% to 100% RH (non-condensing) Storage humidity: 0% to 100% RH (non-condensing) |
|
| Physical Specifications | ||
| Dimensions | 251 mm x 168 mm x 64 mm (9.88 in x 6.61 in x 2.52 in) | |
| Weight | Main unit: 1.0 kg (2.20 lbs) Mounting bracket: 0.9 kg (1.98 lbs) |
|
| Color | White | |
| Warranty Information | ||
| Warranty | 3 Year Warranty | |

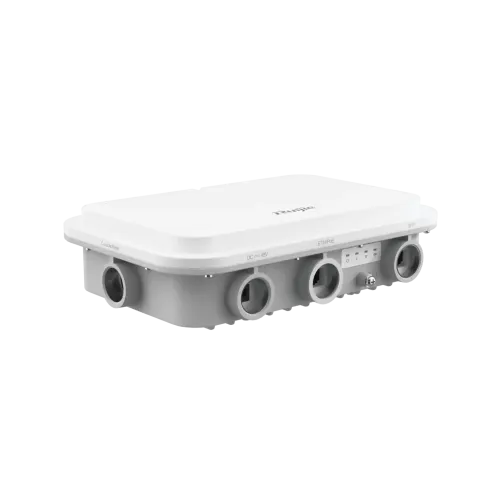

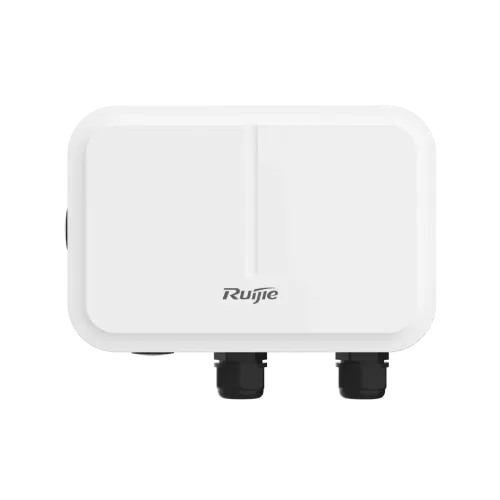

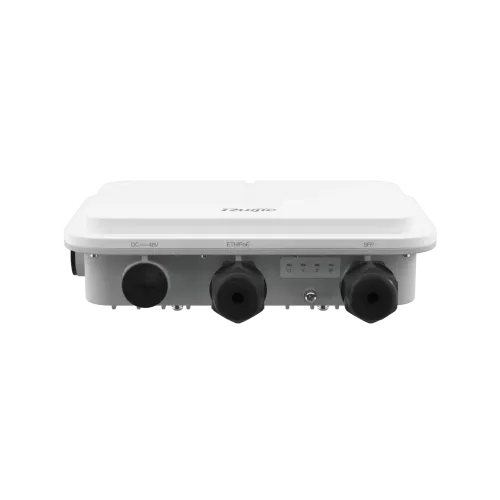

The Ruijie RG-AP680-L 2975Mbps Dual-Radio Wi-Fi 6 Outdoor Access Point Comply with salt spray prevention standards, ensuring stable running in a saline, warm, and humid environment. Built-in high-standard lightning protectors, defending against 6 kV surges and ensuring stable running in bad weather such as thunderstorms. Equipped with 28 dBm omnidirectional antennas with high transmit power. Extending coverage to every corner within 360° and up to 100 m in radius. Good signal coverage for STAs around the AP (including the rear side). Applicable to outdoor environments where STAs are dispersed. Achieving a combined data rate of up to 2975 Mbps. OFDMA and MU-MIMO are introduced to ensure stable access to multiple STAs. OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms. The Ruijie RG-AP680-L 2975 Mbps Dual-Radio Wi-Fi 6 Outdoor Access Point has a 3-year warranty.
