| Main Feature | ||
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | |
| Transmission Method | Recommended: CAT5/5e UTP or better | |
| Transmission Rate | Switch capacity: 4.8Gbps Packet forwarding rate: 3.57Mpps Buffer: 2.5Mb |
|
| MAC Address | 8K | |
| Port | 24*10/100 Base-TX Ethernet ports (Auto MDI/MDIX) | |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
|
| LED | 1* Power,24* Link/Act | |
| Power Supply | Power: Input: 100-240V AC 50/60Hz Power consumption: Max:<6W |
|
| Others | Lightning protection for ports: N/A Lightning protection for power: 6KV ESD: Air discharge: ±10kV Contact discharge: ±8kV Desktop mounting: support Wall mounting: support Rack mounting : support |
|
| Physical Specifications | ||
| Dimensions | 294.0mmx180.0mmx44.0mm | |
| Warranty Information | ||
| Warranty | 1 Year Warranty | |

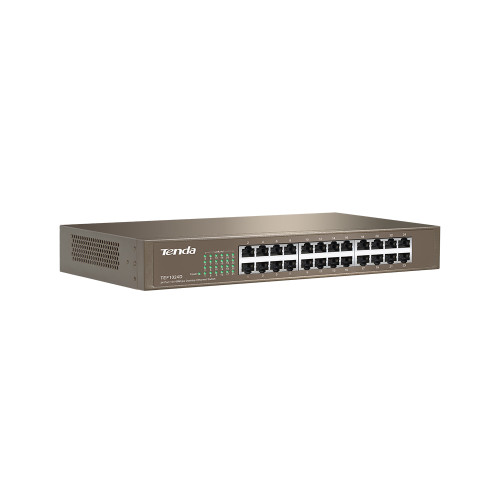

The Tenda TEF1024D 24-Port 10/100 Switch is specially engineered to provide a simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 24-port switch to a router and add up to 23 more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in a sturdy metal case, it is ideal for years of dependable use. The Tenda TEF1024D 24-Port 10/100 Switch is specially engineered to provide a simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 24-port switch to a router and add up to 23 more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in a sturdy metal case, it is ideal for years of dependable use. The switch is solidly housed in a compact and slim metal case that is easy to position on any flat surface with limited space, like a desktop, or mount into a rack. Plus, the device features an internal, high-performance switching power supply. Fully compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX. Dynamic buffering helps balance network load, prevent frame drops, and automatically check error frames, ensuring data integrity. Integrating professional circuits, the Tenda New 24-Port Unmanaged Fast Switch can protect the power supply from inducive lightning (6KV in Common Mode Protection). The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operational! Each port is able to autosense half- or full-duplex mode and auto-detect MDI/MDI-X crossover. The Tenda TEF1024D 24-Port 10/100 Switch has a 1-year Warranty.
