| Main Feature | ||
| Type | WDM Media Converter | |
| Standard | IEEE 802.3, IEEE 802.3i, IEEE802.3u | |
| Functions | Auto-negotiation of half-duplex / full-duplex transfer mode Full-duplex flow control (IEEE 802.3x) Half-duplex flow control (Backpressure) Extends fiber distance up to 20km (12.4 miles) |
|
| Transmission Method | Network Media 10BASE-T: UTP category 3, 4, 5 cables (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Network Media 100BASE-FX: Single-mode fiber |
|
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Interface | 1x 100M single SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
|
| LED | PWR, Link/Act | |
| Power Supply | External Power Adapter: 5 V/0.6 A | |
| Others | Wave Length: 1550 nm TX, 1310 nm RX Fiber Type: 9/125 μm single-mode fiber (≤20 km) |
|
| Physical Specifications | ||
| Dimensions | 3.7 × 2.9 × 1.1 in (95 × 73 × 27 mm) | |
| Warranty Information | ||
| Warranty | 1 Year | |

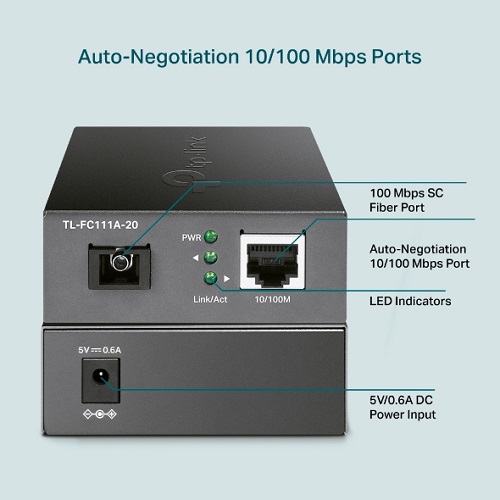

The TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter provides a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works on the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm. The TP-Link TL-FC111A-20 10/100 Mbps WDM Media Converter has a 1-year Warranty.
