| Main Feature | ||
| Type | Gigabit WDM Media Converter | |
| Standard | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z | |
| Transmission Method | Network Media • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) |
|
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Interface | 1× Gigabit SC Fiber Port 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
|
| LED | PWR, Link/Act | |
| Power Supply | External Power Adapter: 5 V/0.6 A | |
| Others | Wave Length: 1550 nm TX, 1310 nm RX Fiber Type: 9/125 μm single-mode fiber |
|
| Physical Specifications | ||
| Dimensions | 3.7 × 2.9 × 1.1 in (95 × 73 × 27 mm) | |
| Warranty Information | ||
| Warranty | 1 Year | |

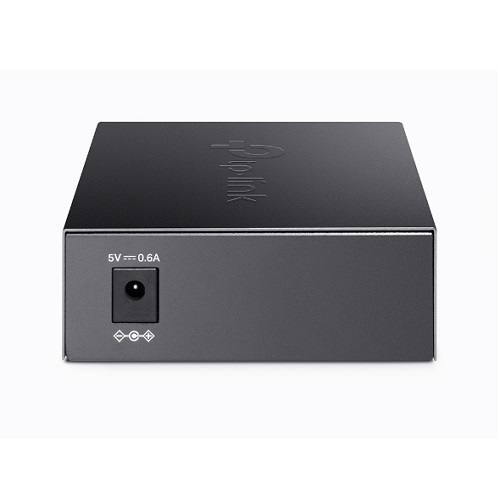

The TP-Link TL-FC311A-20 Gigabit WDM Media Converter provides a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single-mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20. Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in the TX port in which duplex mode is automatically negotiated. The TP-Link TL-FC311A-20 Gigabit WDM Media Converter has a 1-year Warranty.
