Basic Information | ||
Type | Mid-Tower | |
Material | STEEL | |
Motherboard Compatibility | E-ATX, ATX, M-ATX, MINI ITX | |
Features | ||
Expansion Slots | 7 STANDARD SLOTS | |
Radiator Support | TOP: 360MM (MEMORY HEIGHT ≤45MM) MB PANEL: 240MM (EATX MB WIDTH ≤28CM) REAR: 120MM |
|
Fan Support | TOP: 120MM X3 OR 140MM X2 MB: 120MM X3 (EATX MB WIDTH ≤28CM) HDD CAGE: 120MM X1 PSU SHROUD: 120MM X2 REAR: 120MM X1 |
|
Drive Bays | HDD CAGE(BOTTOM): 3.5″ X1 HDD CAGE(TOP): 3.5″ & 2.5″ COMBO X1 SSD BRACKET: 2.5″ X2 |
|
I/O Port | USB3.0 X2 TYPE C X1 HD AUDIO |
|
Clearance Space | ||
Maximum CPU Cooler Height | 170MM | |
Maximum PSU Length | 220MM | |
Physical Specifications | ||
Dimensions | 435X218X456MM(LXWXH) | |
Warranty Information | ||
Warranty | No Warranty |

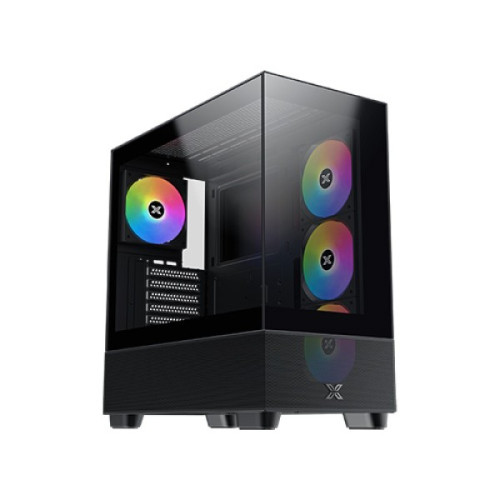

The Xigmatek Endorphin Air V2 Mid-Tower Gaming Casing is designed to provide gamers with excellent performance and aesthetics. This component, which uses tinted, two-sided tempered glass, will look great and make it simple to monitor projects. It is effective to remove heat from a PC system thanks to the good ventilation and airflow, which might be difficult at times of intensive usage.Large casings that can hold motherboards up to E-ATX are included, along with a fan cooling mechanism that has two 140mm fans on top of three 120mm fans, three 120mm fans on the motherboard panel for motherboards with MB widths of less than 280mm, one 120mm fan at the HDD cage, two 120mm fans behind the PSU shroud, and dust filters. It also has three radiators that allow liquid cooling: a 120mm radiator in the back, a 240mm radiator on the motherboard panel with a maximum width of 280mm for the E-ATX motherboard, and a 360mm radiator on top with a maximum memory height of 45mm.While graphics cards can fit up to 420mm without fans at the motherboard panel and up to 285mm with fans at the panel, CPU coolers can only be put on up to 170mm of height. Two 2.5" SSD brackets, one combo 2.5" and 3.5" cage at the top, and one 3.5" HDD cage at the bottom are included.There is a power button, reset button, Type-C port, and USB 3 on the top side of the I/O ports. There are eight on the back, with an LED switch, 0 port, HD audio jack, and RJ45 Gb lanNIC. This shell may be used for any gaming purpose because it is very adaptable, especially when it comes to the PSU support range of 220mm to 230mm.The Xigmatek Endorphin Air V2 Mid-Tower Gaming Casing comes with no warranty.
